**How to design an Inductor**

This article describes the practical process of designing an inductor. After writing the article, I decided to create an Online Webinar to comment on it and make a live design of a bigger inductor. To join the Webinar, you need to register here.

Β In the first place, we will classify the types of inductors.Β

**Low-Frequency Inductors**(< 10 kHz of the operating frequency of the power converter)Β

**Inductors for Differential Mode Suppression in EMI filters****High-frequency InductorsΒ**

βAC current InductorsΒ (>50 kHz of switching frequency without DC bias current)

βDC current InductorsΒ (>50 kHz of switching frequency with a DC bias current)

βPFC inductor (CrCm is similar to an AC inductor and CCM is similar to a DC inductor)

Each type of inductor is specific for a different application and the design procedure will be different. Reading the basics of inductor design, you have to choose a core (with a specific gap or distributed gap), and a winding (selecting the type of wire) to comply with some electrical specifications of inductance and current rating. Therefore, the work consists of finding a combination of the core, gap, and winding to provide a specific inductance at a specific frequency and current ratio, avoiding saturation (magnetic materials can saturate, which means, the inductance effect disappears) and does not burn out.Β

Letβs start with the DC Current Inductor.Β Remember, to join the Online Webinar, you need to register here.

**DC Current Inductor DesignΒ **

This type of inductor is commonly used in DC/DC converters, where its function is critical. Some topologies are buck, boost, or buck-boost converters, Output inductors in Full Bridge where the converter functionality consists of chopping the input energy with the transistors, storing this energy in the inductor during a first interval, and delivering the energy to the load in the second interval.Β

The main difference between a DC inductor and others is the dominance of a DC current with respect to the AC current. The waveform of a buck converter keeps the B-H loop operating with a dB bias.

We can see the current ripple due to the Iac, which provokes the main core losses, and the Ipeak current, which affects the saturation limit.Β Β

**Collecting data before starting the designΒ **

The basic information needed to make the design is:Β

Converter waveforms to extract:Β

InductanceΒ

IDCΒ

IACΒ

IPEAKΒ

FswΒ

These are the basic parameters, however, in industrial designs is common to have some standards or mechanical constraints, these are some examples:Β

Industry Standard (Ex: Automotive, Space, Medical, or others)Β

Temperature conditions. You can have ambient or maximum temperature due to the applicationΒ

Dimensions. Due to the mechanical design of the whole system is typical to have at least a dimension limit, itβs very common to have a footprint fixing 2 dimension limits.Β

Overload curren[Ui2]Β t. It is typical to have inrush currents or transients where a certain overload current is flowing through the inductor. In those cases, the inductance should not drop and therefore the peak current should be considered to avoid saturation.

**Starting the Design**

Once we have all the information needed. we will start the design by selecting the core. There are several materials of cores, however, for this type of DC current (up to hundreds of Amperes) and frequency (up to several MHz), the most common is to use ferrite or powder depending on the variability of the inductance requirement. [Ui3]Β Other materials like nanocrystalline or amorphous will be discussed in future examples.

**Core Material SelectionΒ **

There are a lot of options inside ferrite materials. Ferrite Materials use to be characterized by their Β

Permeability

Frequency operating range

Temperature operating range Β

The magnetic field saturation limit

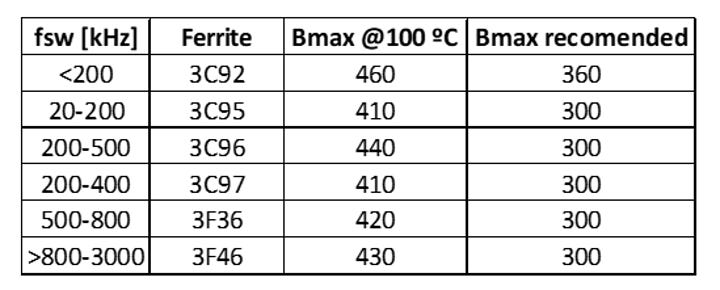

The classic materials used for DC inductors are selected to have a constant permeability. Typical materials in the range of 50 kHz to 1-2 MHz are Β

Within the ferrite materials, you can find normalΒ saturation materials, which I recommend keeping the saturation under 300 mT, or high saturation materials, where you can go up to 360 mT. Β In any case, you can check each core shape datasheet to get the specific value.

However, selecting the material without a specific shape doesnΒ΄t make sense. Therefore, we need to analyze the combination of material, shape, gap, and number of turns. Β

**Design Methods**

There are more than 5 billion combinations of cores, windings, and turns, therefore, engineers have created some methods to reduce the options to be analyzed.

Experience designers use their past experiences with specific core families and materials to select the combinations to be analyzed.

However, I want to explain some methods which can help you in choosing the right core.

**Area Product Method**

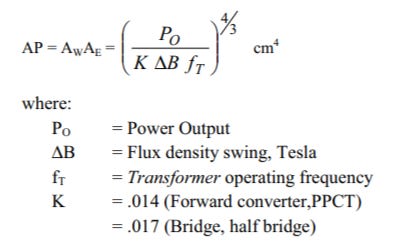

One of the most common methods is the Area Product method, which consists of calculating a value using the energy stored (current and inductance), frequency, maximum magnetic field (determined by the material used), and current density through the winding. Β

Each core shape (independent of the material) has assigned an Ap value, therefore, you can calculate your Ap, choose a specific core with a greater Ap value and be sure, the material you are going to use have the saturation limit you established at the beginning.Β

The value considers the space of the window to the windings, assuming some imperfections. This effect is represented by the k Factor, which is particular for each type of converter.

This is a perfectly valid method, but in my humble opinion, this method is more appropriate to design transformers because the gap itβs not considered. Β

**Losses Method**

I learned this method in the Unitrode books. There is an article called βDesign Review: 500Watt, 40W/in3 Phase Shifted ZVT Power Converterβ by Bill Andreycak which explains this method.

Since you know the maximum losses of your converter for a target efficiency, you can estimate the losses in the magnetic and select the components which have these losses.

We have launched recently a new product, which enhances this method to optimize the core selection.

Once you choose the losses of the core and winding, you can calculate the losses of your core candidates for a different number of turns.

The advantage of this method is the confidence in the maximum temperature rise since you can start the design from there.

The main drawback is the accuracy of your model to convert losses in temperature and the number of manual calculations you need to run to find the optimal core. I recommend this method for transformer designs

**The Energy Method**

And for me, the most appropriate method for inductors is the energy method. This method consists of calculating the energy needed for your design.

Understand the energy stored by your inductor and ensure that the volume of the gap is large enough to store that energy.

And you can calculate the energy stored in the cores which are candidates for different gap values with (2).

The energy calculated for each core and gap should be greater than the energy needed.

If Ecore > Emin this core is a valid candidate.

Letβs do an example.

**Design Example of a DC inductor using Energy Method**

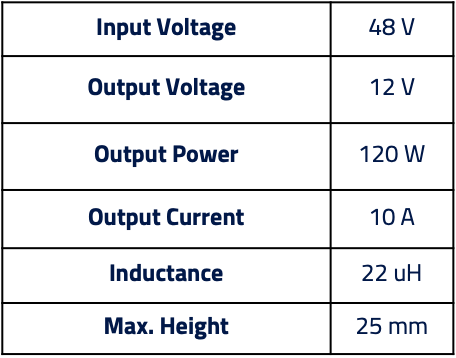

The following design will be based on the following specifications of a Buck converter.

We will run simulations (or use equations) to find the information needed for the design. In my case, I will run a simple simulation to get the values of the table below.

**Core selection**

With this data, I will choose the core using the energy needed. Based on (1) we have:

(3) E =1.66 mJ

I will calculate the energy storing capacity for some cores, using standard material for this frequency, 3C92. I have chosen the PQ and EQ cores because they all fit in the dimensions. To do a professional design, the gap should be in the center leg, and to avoid problems in the manufacturing stage, the minimum gap is 0,1 mm, and the minimum step is 0,01 mm. I have chosen a range from 0,25mm to 1mm. The Bpk for a DC inductor can be assumed 360 mT. With the number of turns calculation, we will play with this value.

As you can see here, the valid cores will be the combinations of core and gap with greater values than 1,6 mJ. As we can see, all the cores have some valid options.

However, I will follow this rule to choose the optimal option.

As smaller the gap, less turns I will need for the same inductance. With lower losses, lower DC losses dominate here (I assume core losses to be very small).

Β·Β Β Β Β Β None of the cores are valid for gap =0,25 mm.

Β·Β Β Β Β Β EQ25 and PQ26 are valid for gap=0,5 mm.

Β·Β Β Β Β Β I have chosen the EQ25 because itβs smaller.

**Turns calculation**

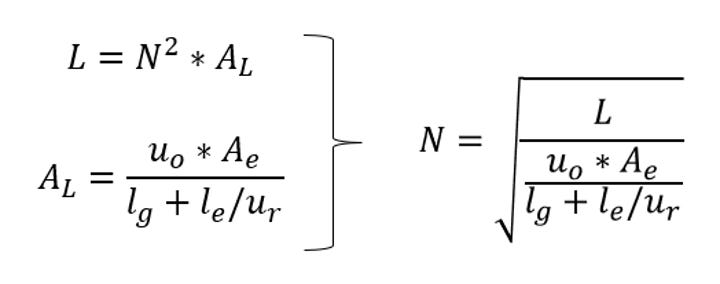

With the core and gap selected and the desired inductance, we can calculate the number of turns needed. The value of the gap could vary to have a specific value of inductance.

For the EQ25, the number of turns needed is 9,6 to get the 22 uH. I chose an integer value, 9 turns, and adjust the gap to get the 22 uH. In these equations, we are not considering the fringing fields which affect to the inductance value. We will talk about this effect in the Online Webinar we will have on the 1st of December.

**Winding selection**

To choose the wire technology, you can use simple rules

**DC dominant current**

Foil, rectangular wire, or round wire with one or 2 layers maximum (You sacrifice Rac losses versus DC losses)

**Intermediate cases**

If you can keep one layer, rectangular and round could work but to reduce the skin effect Litz wire could be the best option

**AC ripple is dominant or very high frequency**

Β Litz wire to reduce Rac.

In this case, we are talking about a dominant DC current, therefore, the rectangular wire will be preferred.

The number of turns and the gap is correlated, therefore, we need to see the best combination of losses.

First, we are going to choose a wire size. Check the bobbin window area and check the height, because the main goal is to have as minimum layers as possible (ideally one). In our case, we are going to use a rectangular wire and therefore we do not need to use a bobbin. To calculate the wire dimensions, we need to know what is the available height in the core and what is the minimum distance between turns that we have. In this case, we are going to take a 0.25 mm distance between turns and from the wire to the core.

Rectangular height= (Core_window_min_height β (Nturns-1) * distance_turn_to_turn β distance_between_turn_core)/Nturns Β = 10-(9-1)*0.25-0.5)/9 = 0.83

The value 0,83 mm is the available height for each turn. We need to consider the wire insulation which could be 0.1 mm or 0.2 mm depending on the grade of the wire. In this case, we have a Grade 1 rectangular wire and we can consider 0.7 mm of conducting height.

The minimum core width space is 5,2 mm, taking 0,5 mm of tolerance in each side, we ended up having a width wire of 4,2 mm, considering the isolation, we will have 4 mm of real width of conduction.

With this value, we can calculate the current density and DC losses:

Current density = 3, 2 A/mm2 ( For DC inductor, keep this value below 5A/mm2 with natural convection)

Pdc= 0,26 W

Pcore=0,09W

The total losses will be 0,35 W. As the design use only one layer, the proximity losses will be negligible for this design, and for DC dominant currents, the skin effect is also negligible.

**Catalog Designs**

The previous process allows us to design a custom piece, however, customizing a component is very expensive, therefore, I always recommend checking the availability of components from catalogs that fit in your design.

If we take the specifications of Table I and check in the libraries of manufacturers, we find the following design which fits perfectly in the converter.

You can check in classic distributors filtering by inductance and rated current or visit Bourns page to look for the best option. In my case, I have used the finder of components at Frenetic Online, which recommends options of the best industry manufacturers and allows you to run simulations for this component.

**Disclaimer**

I havenΒ΄t included Rac and Fringing flux losses and impact on the inductance here, because this is a basic description of how to design an inductor. In our tool, Frenetic, we calculate the losses using complex models, some of which are based on laboratory measurements.

In the inductor example, we have considered the wire insulation to be enough for ensuring the insulation of the component. However, this topic could be discussed in our Online Event.

If you consider this topic interesting, join me in our Online Webinar about this topic, where I will comment on this example and show a much more complex design. To join the Webinar, you need to register here.
