Save 99% of the time in Powder cores
Last week I expressed my opinion about using ONLY excel spreadsheets to design magnetics and the community response was clear, excel works in a fully iterative process but it’s not enough for a professional design.
If you are using something else than Excel or Mathcad, you are designing better than 80% of the industry. Ansys or Comsol are good examples.
However, these tools are disconnected from reality. Their models aren´t checked in the Lab or updated, because is IMPOSSIBLE for them.
👉 Have you ever met a Magnetic Design Engineer working in Ansys?
They can’t support you in magnetic design. If the core losses are not accurate, It’s your problem. And this is the reason why a lot of people having these tools are moving to Frenetic.
We are online and we provide technical support worldwide.
We provide samples in less than a month
We are already MAGNETIC SOFTWARE LEADERS in sales in Europe and the USA in 2022.
In my DESIGN process, excel is around, of course, but not as the main calculation tool.
Inductance calculation for Powder cores.

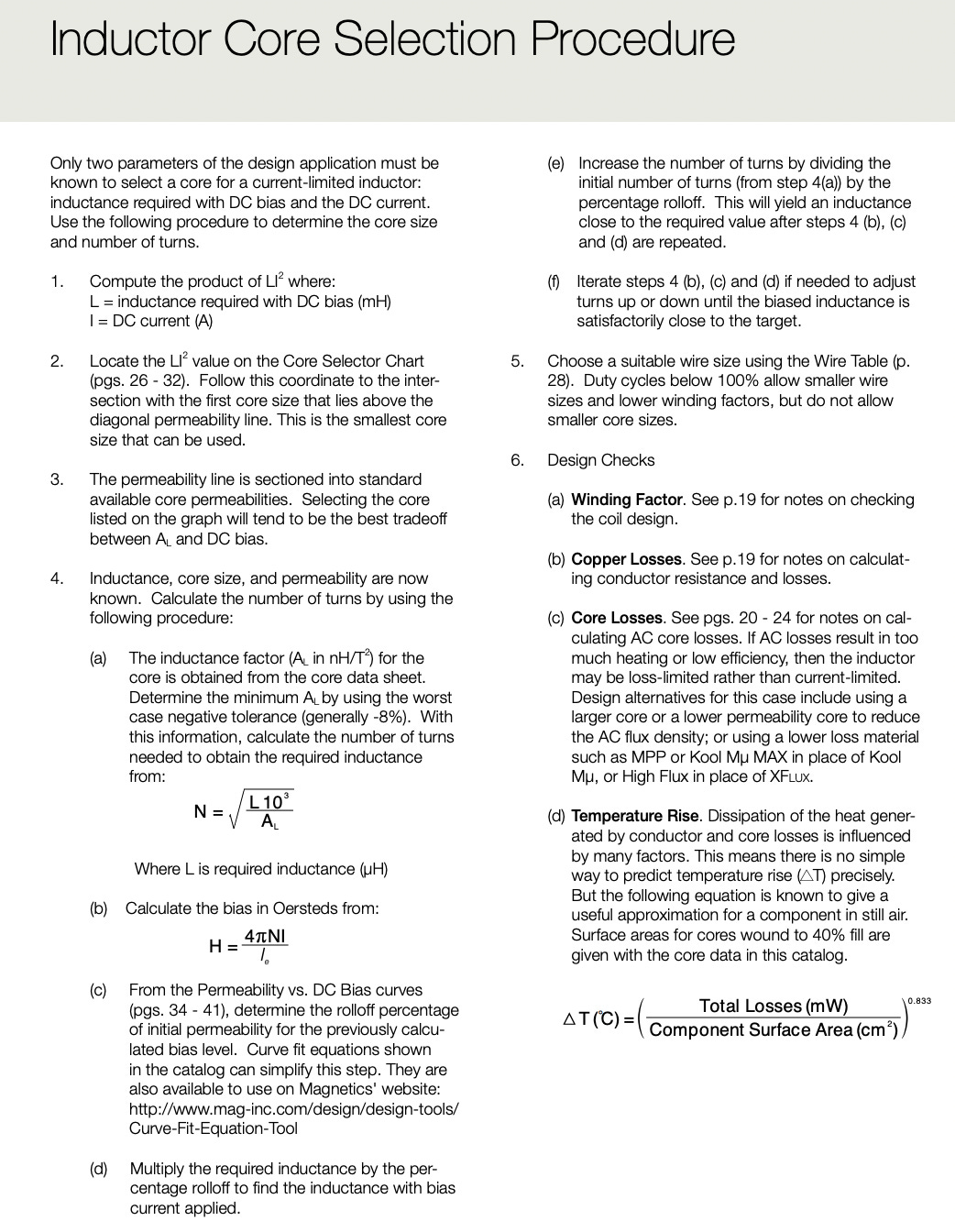

I created an excel file to follow the iterative process explained by Magnetics on page 19 of their catalog.
3 hours for building the basic excel and every iteration with the catalog on another screen.

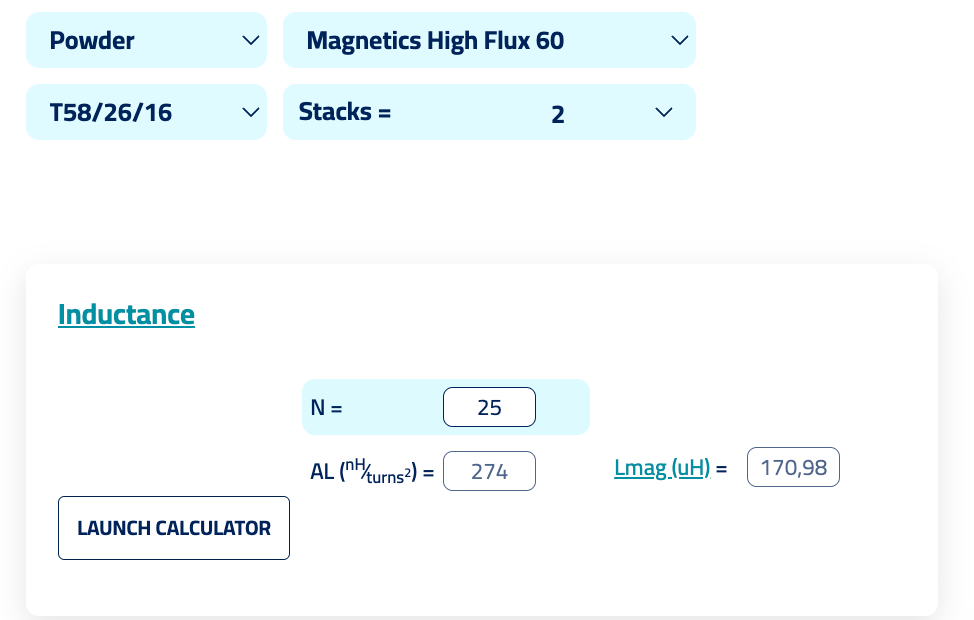

25 seconds using Frenetic with the following feature. Save 99% of the time.
Intuitive
Fast
You can save the results
and you can see the inductance in the function of the current
Frenetic users have created more than 14.615 magnetic designs with Immediate FEEDBACK from our experts.
Imagine how you will boost your performance after buying a Frenetic License.
Leakage Inductance Game
I have designed a Full Bridge Center tap transformer, I used a PQ40/40, Litz wire in primary, and foil in both secondaries.
I want you to show your Super Powers in winding transformers
Which winding strategy of the two options have lower Leakage inductance between Primary (blue) and first secondary (yellow)?
Would you dare of saying the value?
