Effects of Airgaps on Parasitic Capacitance of Magnetic Components
Today I bring you a summary of an article that I have loved, about the parasitic capacitance that exists between different points of a core. I still need to understand how these capacitances can impact impedance and therefore in the design phase. We will have to experiment. I have created this card of the article
Title: Effects of Airgaps on Parasitic Capacitance of Magnetic Components
Authors: Shaokang Luan, Zhixing Yan, and Hongbo Zhao
Aalborg University, Denmark
Main Topic: Parasitic capacitances in magnetic cores
Main Contribution: Modeling of a magnetic core in sections, demonstrating that there is a potential difference between the different sections, especially if there is a gap. This occurs when there is no shielding layer that short-circuits all parts of the cores.

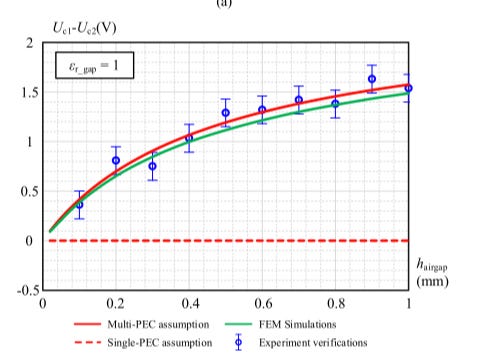

Demonstration: Yes.With FEM simulations and a prototype. The picture below, shows the dV between different core sections depending on the GAP.
Application: Part of this capacitance appears in the GAP. It's not clear to me whether this capacitance affects the impedance of the component from the circuit's perspective or only from the perspective of isolating the core from the rest of the circuit; more research in my Lab will be needed.
I hope you enjoyed it. Thank you for reading.
Share with your friends will help me a lot 😊.
Reference
[1] S. Luan, Z. Yan and H. Zhao, "Effects of Airgaps on Parasitic Capacitance of Magnetic Components," in IEEE Transactions on Power Electronics, vol. 39, no. 1, pp. 1115-1134, Jan. 2024, doi: 10.1109/TPEL.2023.3321477.
